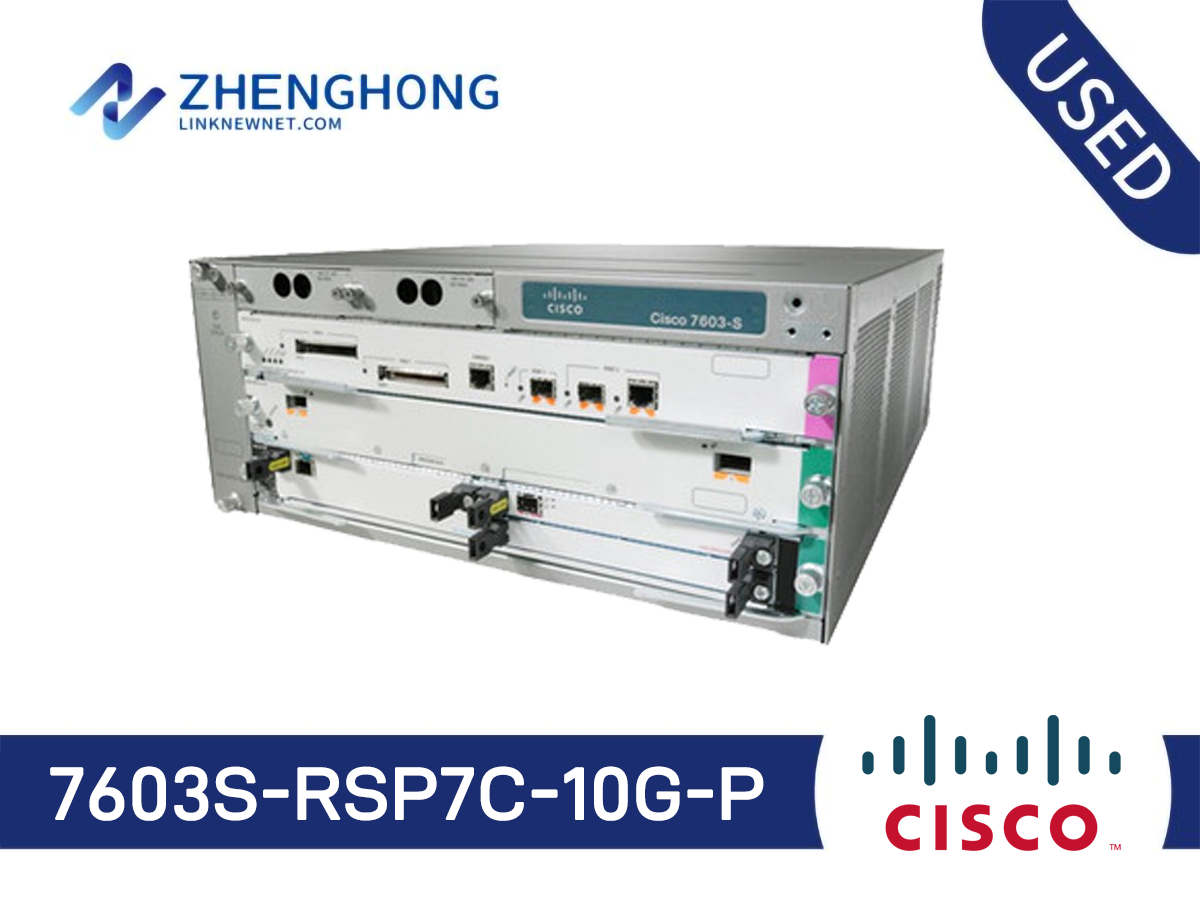

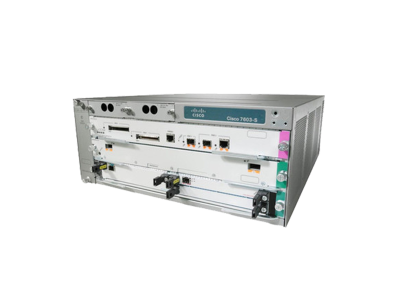

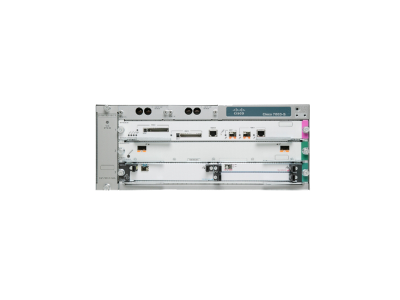

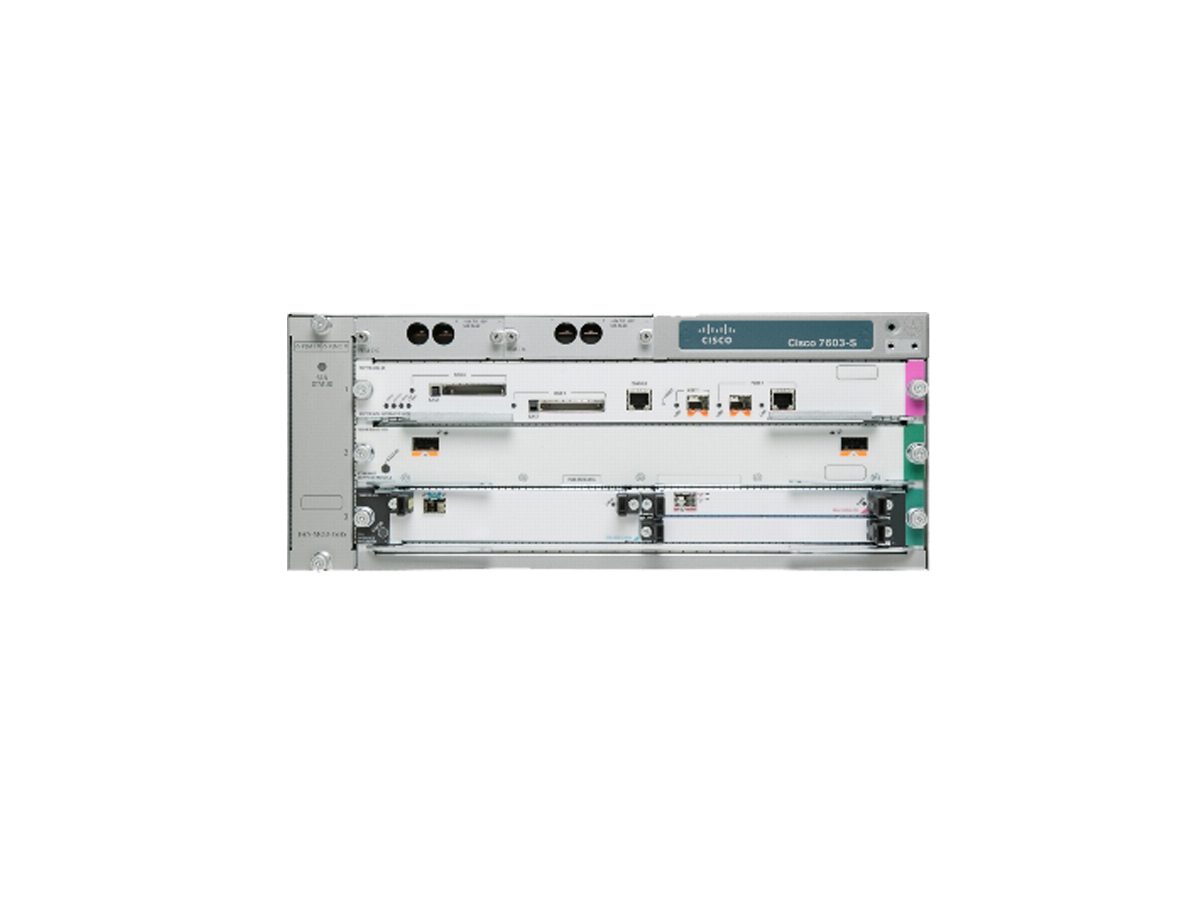

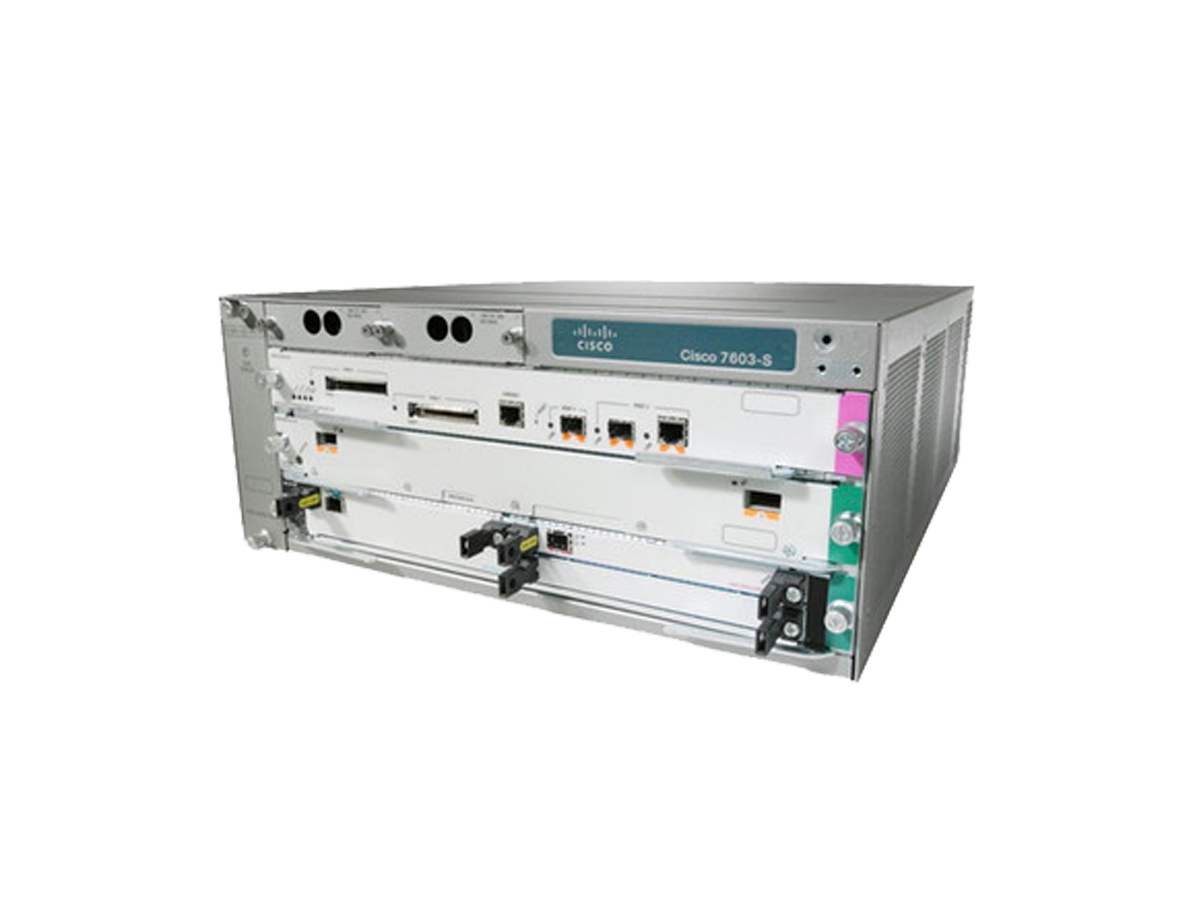

7603S-RSP7C-10G-P - Cisco 7603 Router

Model: 7603S-RSP7C-10G-P

Detail: Cisco 7603S Chassis,3-slot,RSP720-3C-10GE,PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7603S-RSP7C-10G-P Specification
General
Device Type	Router - with Cisco 7600 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE)
Enclosure Type	Rack-mountable - modular - 4U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance	Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity	ACL rules: 128000 ¦ IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000
Network / Transport Protocol	TCP/IP, ICMP/IP, DHCP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, GRE, Bidirectional PIM
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, VPN support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, DiffServ support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, Virtual Route Forwarding-Lite (VRF-Lite)
Compliant Standards	IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, EN300-386
RAM	2 GB (installed) / 6 GB (max)
Flash Memory	1 GB (installed) / 2 GB (max)
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2
Expansion Slots	3 (total) / 2 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)	1 (installed) / 3 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	1 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit	Included
Dimensions & Weight
Width	17.4 in
Depth	20.3 in
Height	7 in
Weight	27.12 lbs
Manufacturer Warranty
Service & Support	Limited warranty - 1 year ¦ Limited warranty - replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85% (non-condensing)

Q&A

What common issues might I face with the 7603S-RSP7C-10G-P

Common troubleshooting includes verifying power connections, checking for firmware updates, and ensuring proper configuration of network settings.

What accessories are compatible with the 7603S-RSP7C-10G-P?

Accessories include additional power supplies, line cards for various connectivity needs, and rack-mount kits.

How does the 7603S-RSP7C-10G-P compare to other Cisco Routers?

The Cisco 7603S-RSP7C-10G-P offers balanced performance for its cost, making it a valuable option for specific network needs compared to newer models.

How to use the management features in the Cisco 7603S Chassis?

Use the Cisco IOS software to configure and manage the router through CLI commands or a web-based interface for advanced network settings.

How cost-effective is the 7603S-RSP7C-10G-P?

The 7603S-RSP7C-10G-P offers significant cost savings over new units while providing robust performance.

What are the key features of the Cisco 7603S Chassis?

The Cisco 7603S Chassis features 3 slots, RSP720-3C-10GE, and a power supply, suitable for scalable network solutions.

What are the application scenarios for the 7603S-RSP7C-10G-P?

Ideal for WAN aggregation and Internet edge routing, the 7603S-RSP7C-10G-P is perfect for service providers and enterprise networks.

How to install the Cisco 7603S Chassis?

Follow the installation guide included with the unit, ensuring all connections are secure and power settings are appropriate for your environment.

Does this Cisco Router require upgrades?

It is recommended to check for any firmware or software updates to ensure optimal performance and security.

Are there alternative products to the 7603S-RSP7C-10G-P?

For similar performance, consider new models such as the Cisco ASR series for more recent features and support.
