What common troubleshooting steps are recommended for the Cisco 2801 router?
Common steps include checking power connections, verifying IP configuration, and ensuring the firmware is current.
What accessories are available for the Cisco 2801 router?
Accessories include additional PVDM modules, HWIC cards, AIM modules, and memory upgrades.
How does the Cisco 2801 router compare to other similar products?
The Cisco 2801 router offers advanced features and customization options at a relatively low cost compared to other routers in the Cisco ISR series.
What is the memory capacity of the Cisco 2801 router?
The Cisco 2801 router comes with 128MB flash memory and 384MB DRAM.
Learn More
Does the Cisco 2800 Series support Cisco 2-port Fast Ethernet Layer 3 HWIC?
No, the Cisco 2800 Series only supports the 1-port Fast Ethernet Layer 3 HWIC. The 2-port Fast Ethernet Layer 3 HWIC is only supported by the Cisco 3800 series.
Are any interface cards supported only on specific Cisco 2800 Series platforms?
Yes. The table shows which interface cards are supported on which versions of the Cisco 2800 Series.
Which WICs are not supported in the Cisco 2800 Series?
The table shows the WICs have been replaced with newer versions that provide the same or increased functions.
Does the Cisco 2800 Series support all the current WICs?
Most existing modules are supported in the Cisco 2800 (refer to the Cisco 2800 Series data sheet for a detailed list of all supported modules).
Is online insertion and removal (OIR) supported for modules in the NME and HWIC slots?
No, OIR of modules is not supported on the Cisco 2800 Series.
Does the CISCO2801 support an NME slot?
No, the CISCO2801 does not support an NM or NME slot. It provides four modular card slots to support combinations of HWICs, VWWIC, WICs, and VICs.
Can the CISCO2801 support both Cisco inline power and IEEE 802.3af PoE devices at the same time?
Yes, the Cisco 2800 Series supports up to the maximum total power available per model.
Can the CISCO2801 provide inline power to IP phones and other devices?
With the optional AC plus inline power supply, the Cisco 2800 Series can provide either IEEE 802.3af-compliant Power over Ethernet (PoE) or Cisco prestandard inline power to devices. The platform is capable of providing up to 15 watts per port, to a total power limit of 120 watts on the Cisco 2801.
Does the Cisco 2801 support a T3/E3 interface?
No, CISCO2801 doesn't support NM-1T3E3, but the Cisco 2811, 2821 and 2851 platforms support.But the recommended platform for T3/E3 connectivity is the Cisco 3800 Series.
What's the recommended performance with services enabled (IMIX traffic)?
It's up to 1 T1/E1s/xDSL.

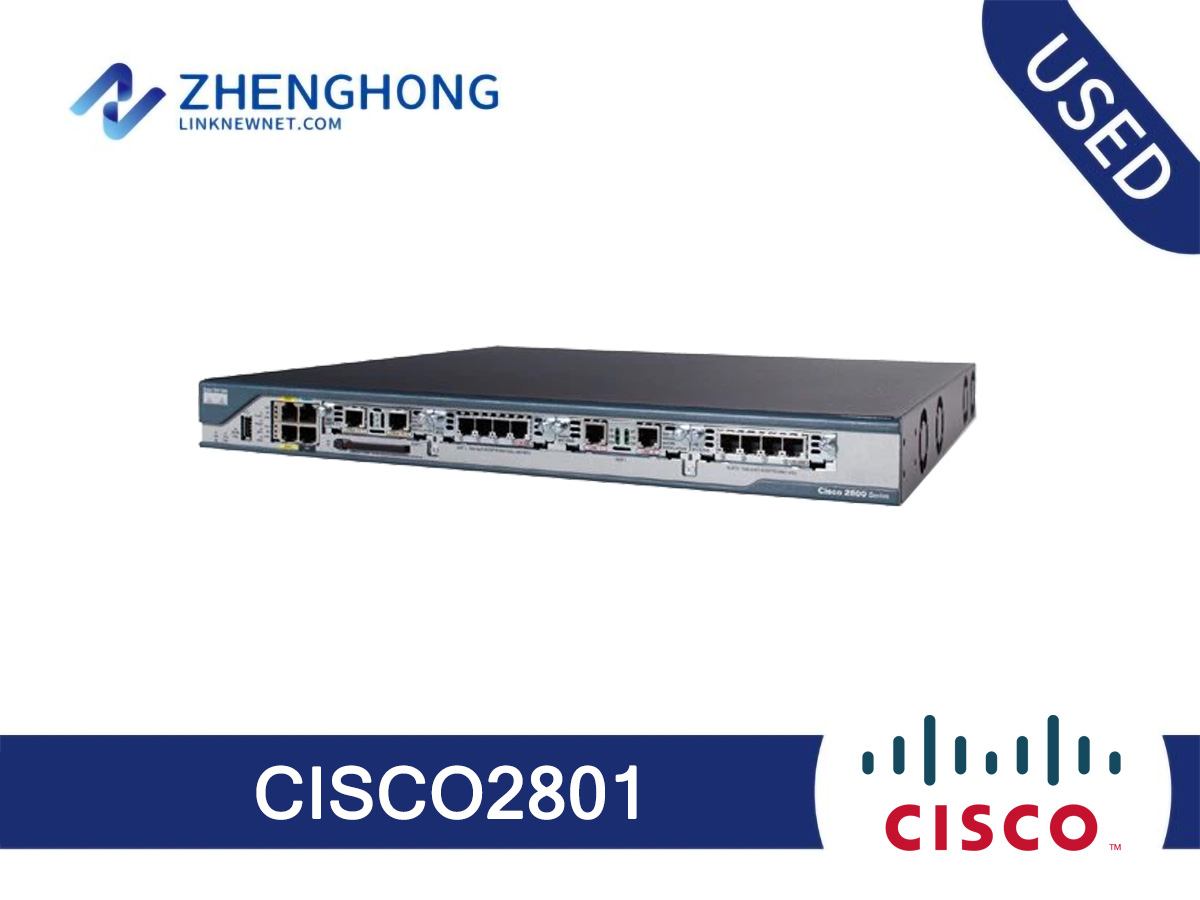

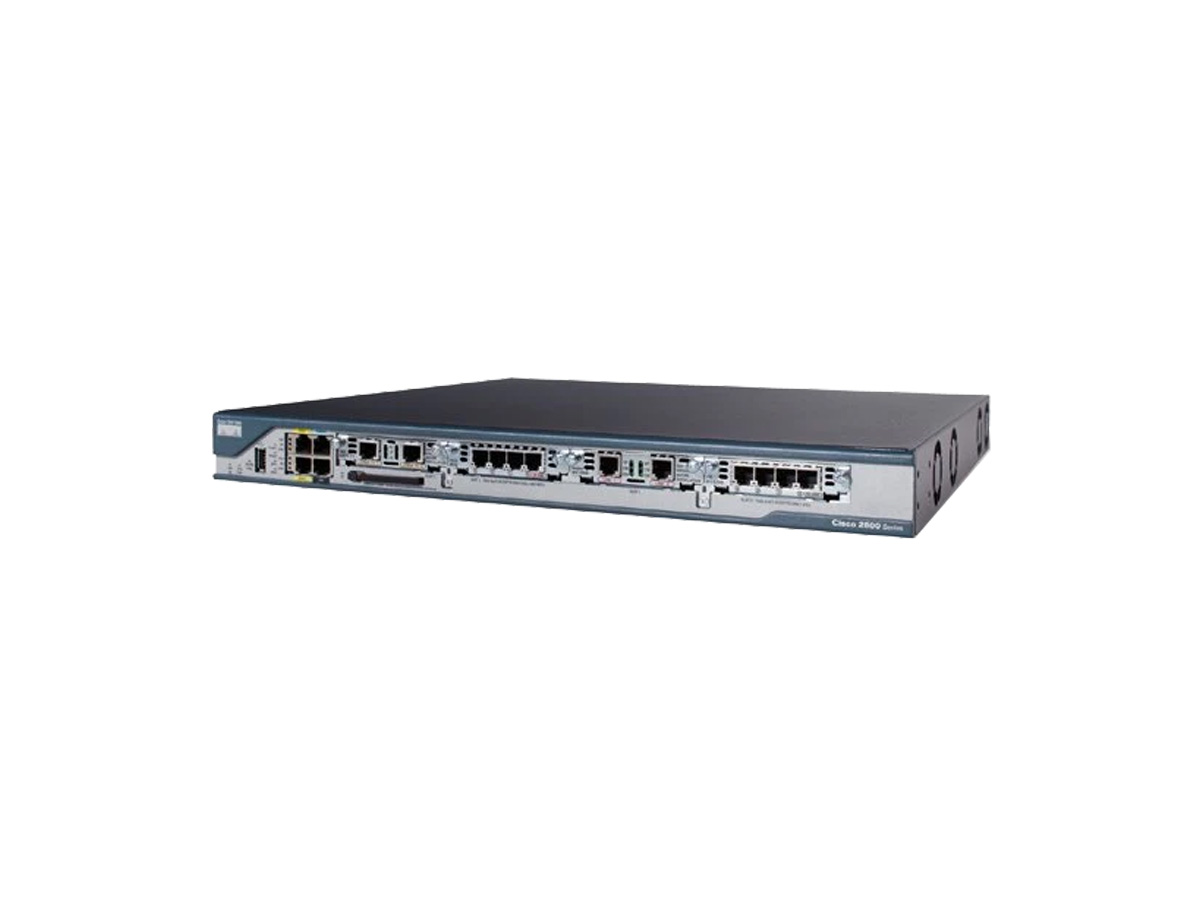

What are the primary features of the CISCO2801 router?
The CISCO2801 features AC power, 2 Fast Ethernet ports, 4 expansion slots, 2 PVDM slots, 2 AIM slots, IP Base IOS software, with 128MB Flash and 384MB DRAM.
How does the CISCO2801 ensure cost-effectiveness for system integrators?
Its combination of robust performance, compact form factor, and essential security features offers a value-packed solution, reducing overall deployment costs.
Can the CISCO2801 router be installed in a rack?
Yes, the CISCO2801 can be rack-mounted, providing flexibility for different installation environments and conserving space in compact network closets.
What are common application scenarios for the CISCO2801 router?
It's suited for small to medium-sized businesses, providing secure connectivity for office networks, remote/branch offices, and as part of managed network services.
How to perform a basic configuration on the CISCO2801?
Initial configuration can be performed via the Cisco IOS CLI using a console connection or through the Cisco Configuration Professional software for a more user-friendly interface.
What accessories are available for the CISCO2801 router?
Accessories include rack-mount kits, network modules, interface cards, and power supplies, designed to enhance and customize the router's capabilities.
How to troubleshoot network connectivity issues on the CISCO2801?
Start by checking the LED indicators for status, verify cable connections, ensure correct configurations via the CLI, and review the router's log for any error messages.
Are there any alternative products to the CISCO2801 within Cisco's lineup?
Yes, alternatives include newer models like the Cisco 2901 router, which offers enhanced performance, greater density of Ethernet ports, and more contemporary features for today's networking needs.
Does the CISCO2801 router support VPN configurations?
Yes, the CISCO2801 supports various VPN configurations, enabling secure and encrypted connections for remote access or site-to-site VPNs with appropriate IOS software versions.
How often does the CISCO2801 router require firmware updates?
Firmware updates are not on a fixed schedule but are released as needed for security patches, feature enhancements, and bug fixes. It's recommended to review Cisco advisories regularly for update guidance.
How cost-effective is the Cisco 2801 router for small businesses?
The Cisco 2801 router provides a robust set of features for small businesses, including 2FE ports and 4 slots, at a competitive price point.
What are the key features of the Cisco 2801 router?
The Cisco 2801 router includes AC power, 2 Fast Ethernet ports, 4 slots (2 HWIC), 2 PVDM, 2 AIM, and IP BASE, with memory of 128F/384D.
What are the typical application scenarios for the Cisco 2801 router?
The Cisco 2801 router is ideal for small to medium-sized businesses needing reliable routing and security.
How do I install the Cisco 2801 router?
The Cisco 2801 router can be installed by connecting it to your network and configuring it through the IP BASE interface. Detailed instructions are available in the user manual.
Does the Cisco 2801 router need regular upgrades?
Yes, firmware and software updates should be regularly applied to ensure optimal performance and security for the Cisco 2801 router.
Are there alternative products to the Cisco 2801 router?
Yes, alternatives include other models in the Cisco ISR 2800 series and newer Cisco ISR models.
What common troubleshooting steps are recommended for the Cisco 2801 router?
Common steps include checking power connections, verifying IP configuration, and ensuring the firmware is current.
What accessories are available for the Cisco 2801 router?
Accessories include additional PVDM modules, HWIC cards, AIM modules, and memory upgrades.
How does the Cisco 2801 router compare to other similar products?
The Cisco 2801 router offers advanced features and customization options at a relatively low cost compared to other routers in the Cisco ISR series.
What is the memory capacity of the Cisco 2801 router?
The Cisco 2801 router comes with 128MB flash memory and 384MB DRAM.
