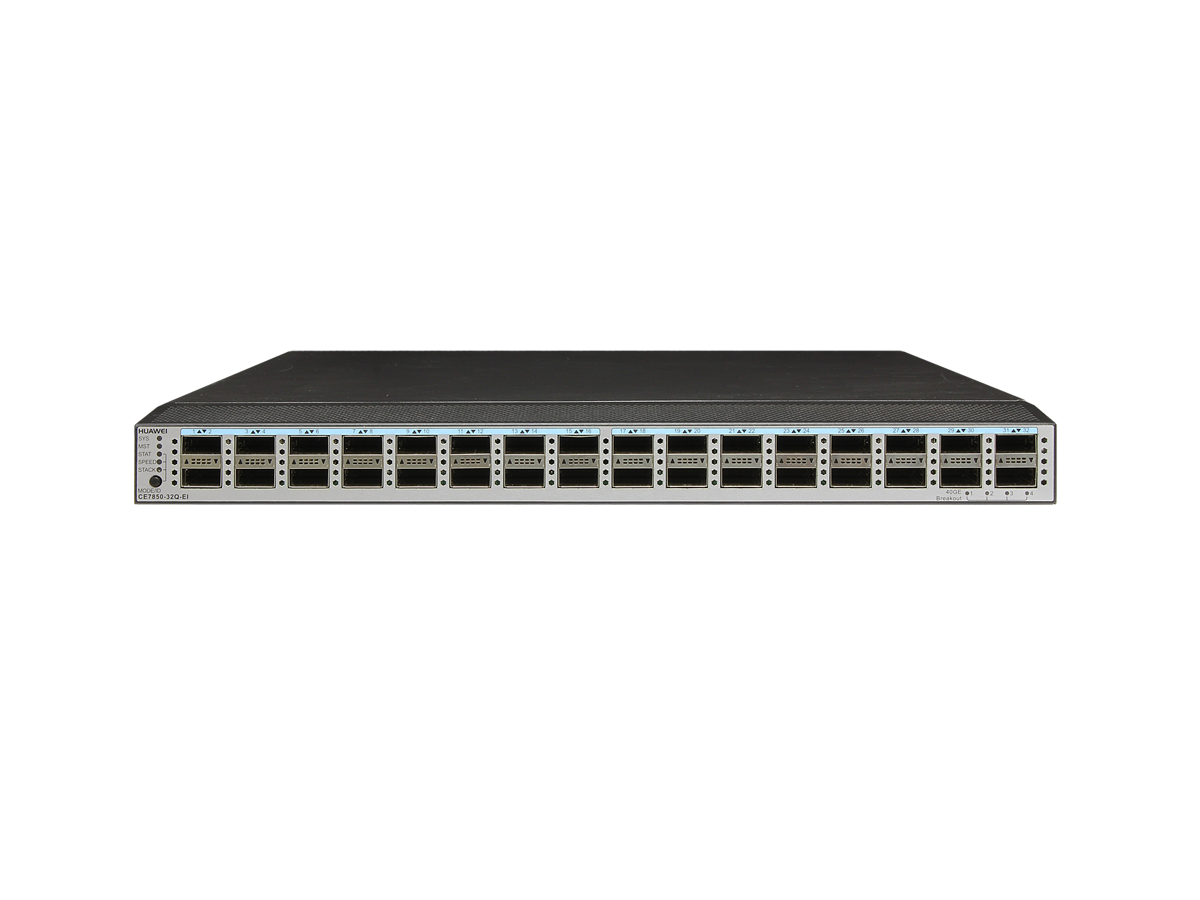

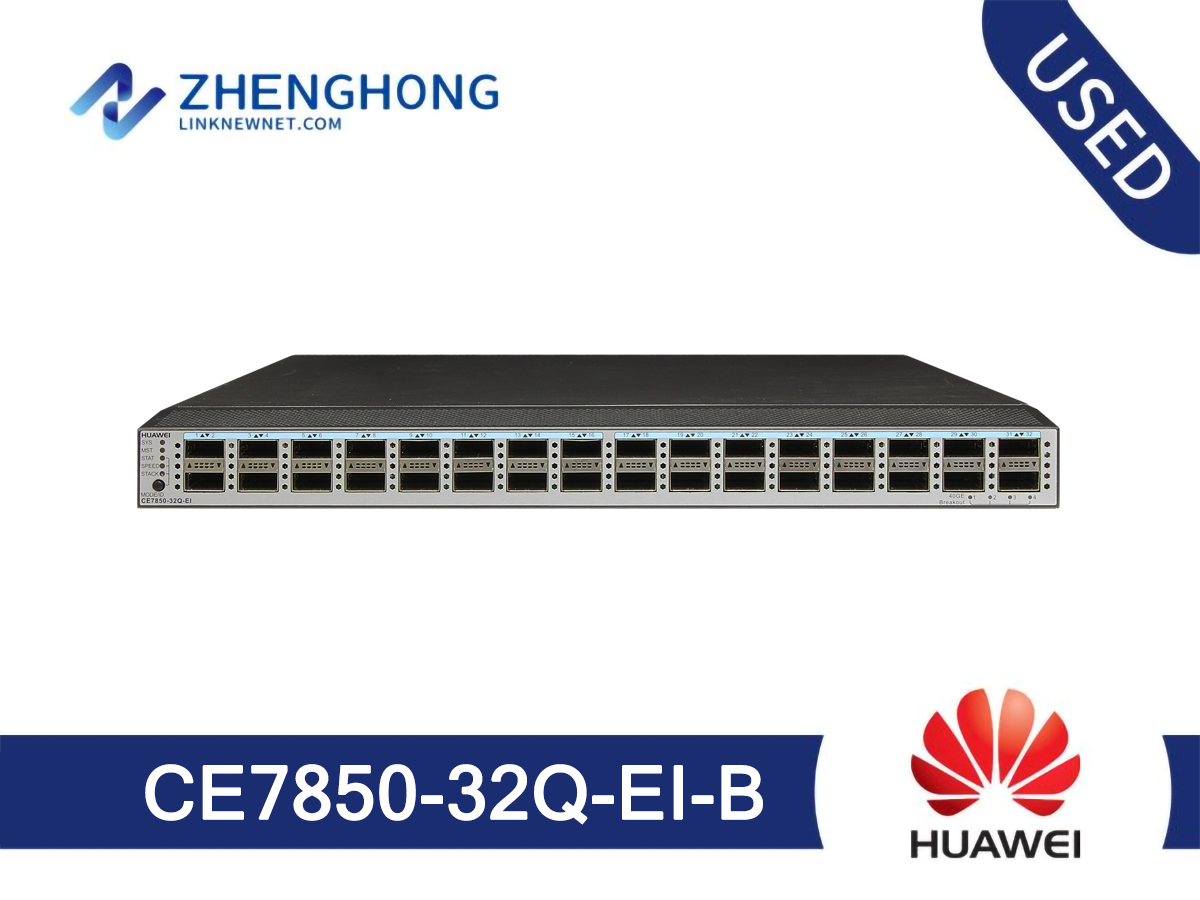

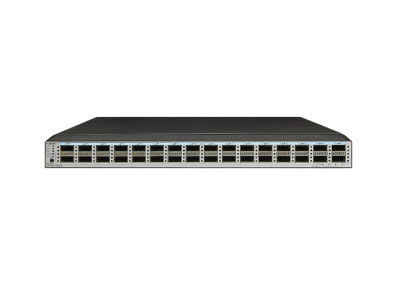

Huawei CloudEngine 6800 Series Switches CE7850-32Q-EI-B

Model: CE7850-32Q-EI-B

Detail: Huawei CE7850-32Q-EI Switch (32-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without Power Module)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE7850-32Q-EI-B Specifications
Ports	32 x 40 GE QSFP+
Switching Capacity	2.56 Tbit/s
Forwarding Performance	1,440 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack
	SVF
	M-LAG
Network Virtualization	TRILL
	VXLAN routing and bridging
	BGP-EVPN
	QinQ access VXLAN
	IPv6 over VXLAN
SDN	Agile Controller
SDN	VMware NSX
Network Convergence	FCoE
Network Convergence	DCBX, PFC, and ETS
Programmability	OPS
	Puppet, Ansible, and OVSDB plug-ins released on open source websites
	Linux containers for open-source and customized programming
Traffic Analysis	NetStream
Traffic Analysis	sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GARP VLAN registration protocol (GVRP )
ACL	Ingress: 3,750; Egress: 1,000
QoS	Traffic classification based on L2 headers, L3 protocols, L4 protocols, and 802.1p priority
	Actions of ACL, CAR, re-marking, and scheduling
	Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
	Congestion avoidance mechanisms, including WRED and tail drop
	Traffic shaping
Configuration and Maintenance	Console, Telnet, and SSH terminals
	Network management protocols, such as SNMP v1/v2c/v3
	File upload and download through FTP and TFTP
	BootROM upgrade and remote upgrade
	802.3az Energy Efficient Ethernet (EEE)
	Hot patches
	User operation logs
	Zero-Touch Provisioning (ZTP)
Security and Management	802.1x authentication
	Command line authority control based on user levels, preventing unauthorized users from using commands
	DoS, ARP, and ICMP attack defenses
	Port isolation, port security, and sticky MAC
	Binding of the IP address, MAC address, interface and VLAN
	Authentication methods, including AAA, RADIUS, and HWTACACS
	Remote Network Monitoring (RMON)
Dimensions (W x D x H)	17.4 in. x 23.9 in. x 1.7 in. (442 mm x 607 mm x 43.6 mm)
Weight (fully loaded)	11.2 kg (24.7 lb)
Environment Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage	90V AC to 290V AC
Maximum Power Consumption	431W

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
