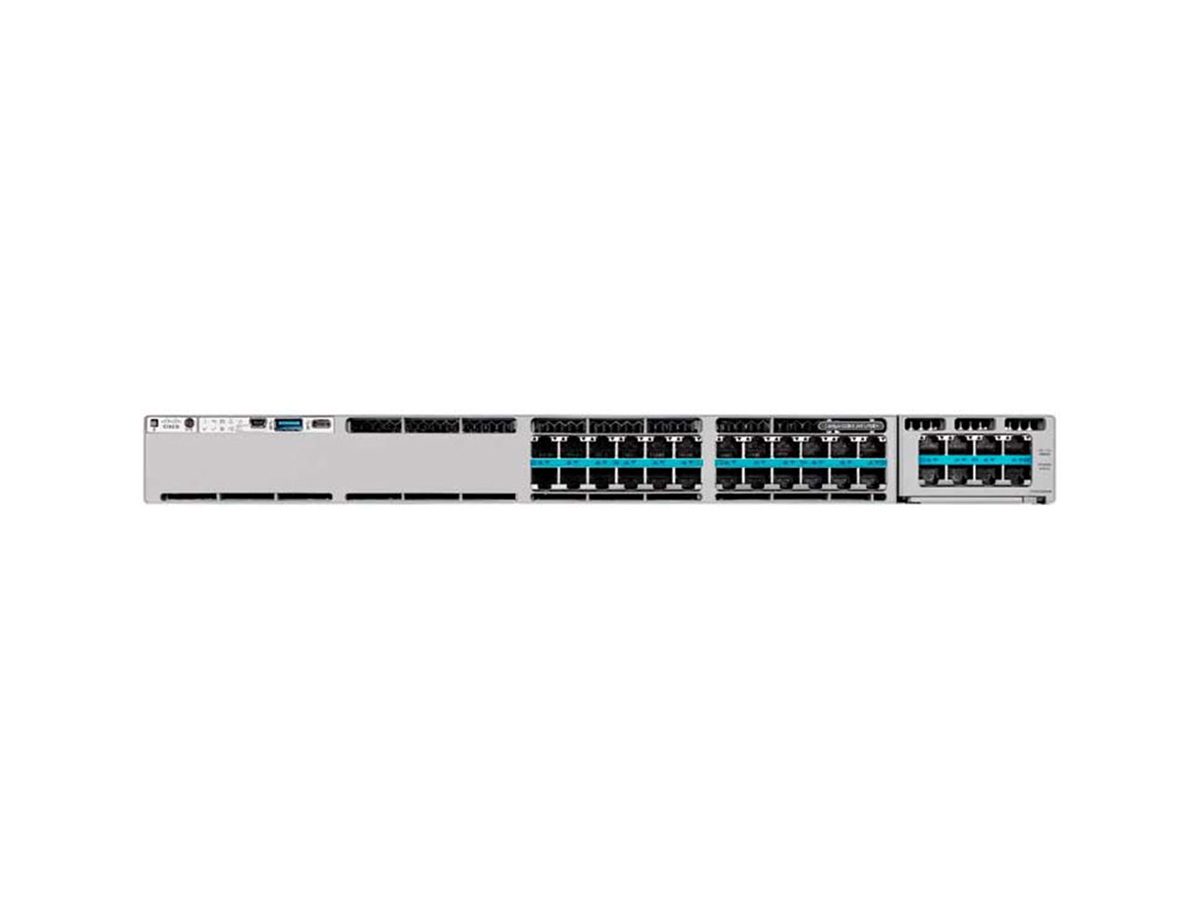

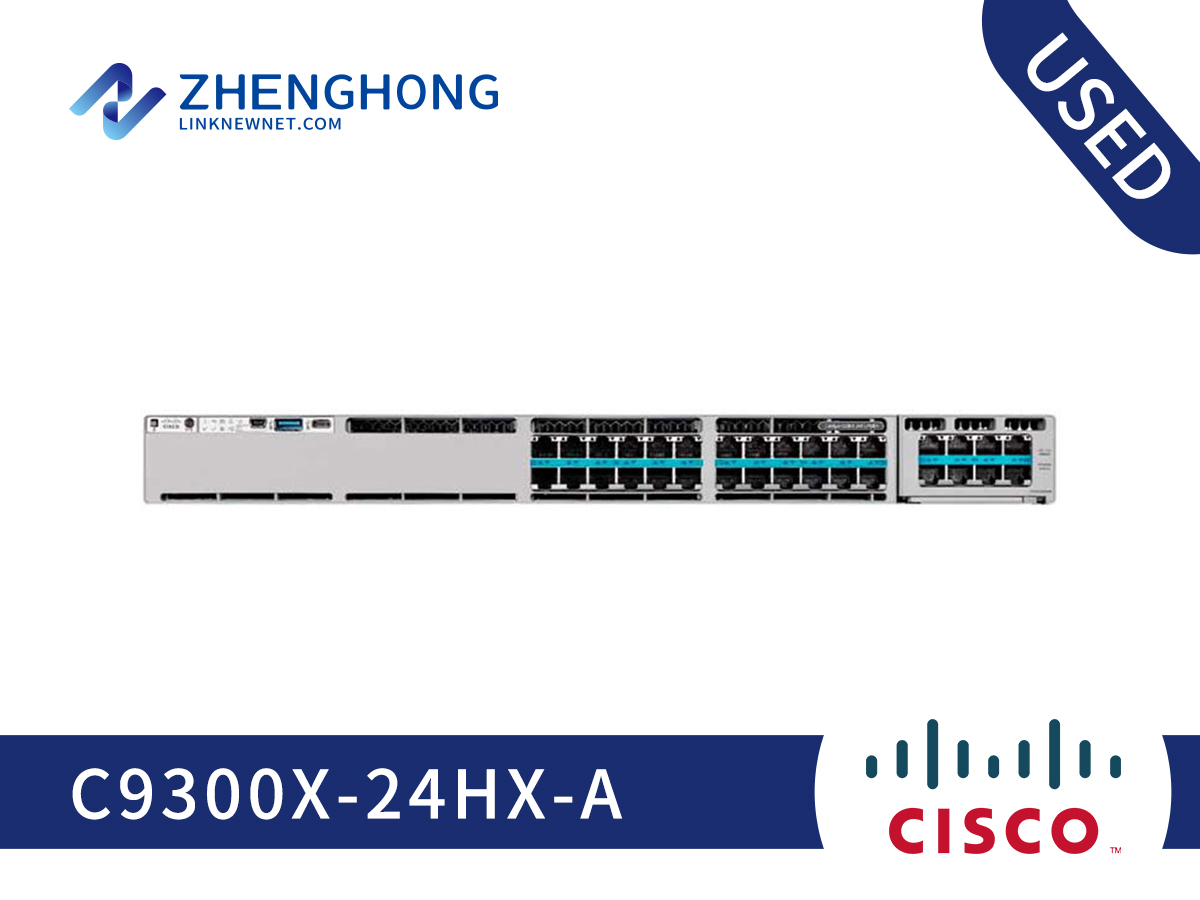

C9300X-24HX-A | |
Product list | |
Product code | C9300X-24HX-A |
Power cable | No |
Button | No |
Product parameters | |
Network Ports | 24 |
Modular Uplink | Yes |
Stack Port | Yes |
Port Details | 24 port Cisco UPOE+, 24x 10G Multigigabit (10G/5G/2.5G/1G/100M) |
Ethernet Technology | Gigabit Ethernet |
Switch capacity | 880 Gbps |
Switch Capacity witch stacking | 1880 Gbps |
Forwarding rate | 327.38 Mpps |
Forwarding rate with stacking | 1398.8 Mpps |
Layer Supported | 3 |
Introduction | Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. |
Power supply | |
Default | 1100W AC 1900W AC |
Physical specifications | |
Width | 20.63 in |
Height | 1.7 in |
Depth | 17.5 in |
Weight | 13.8 lb |
