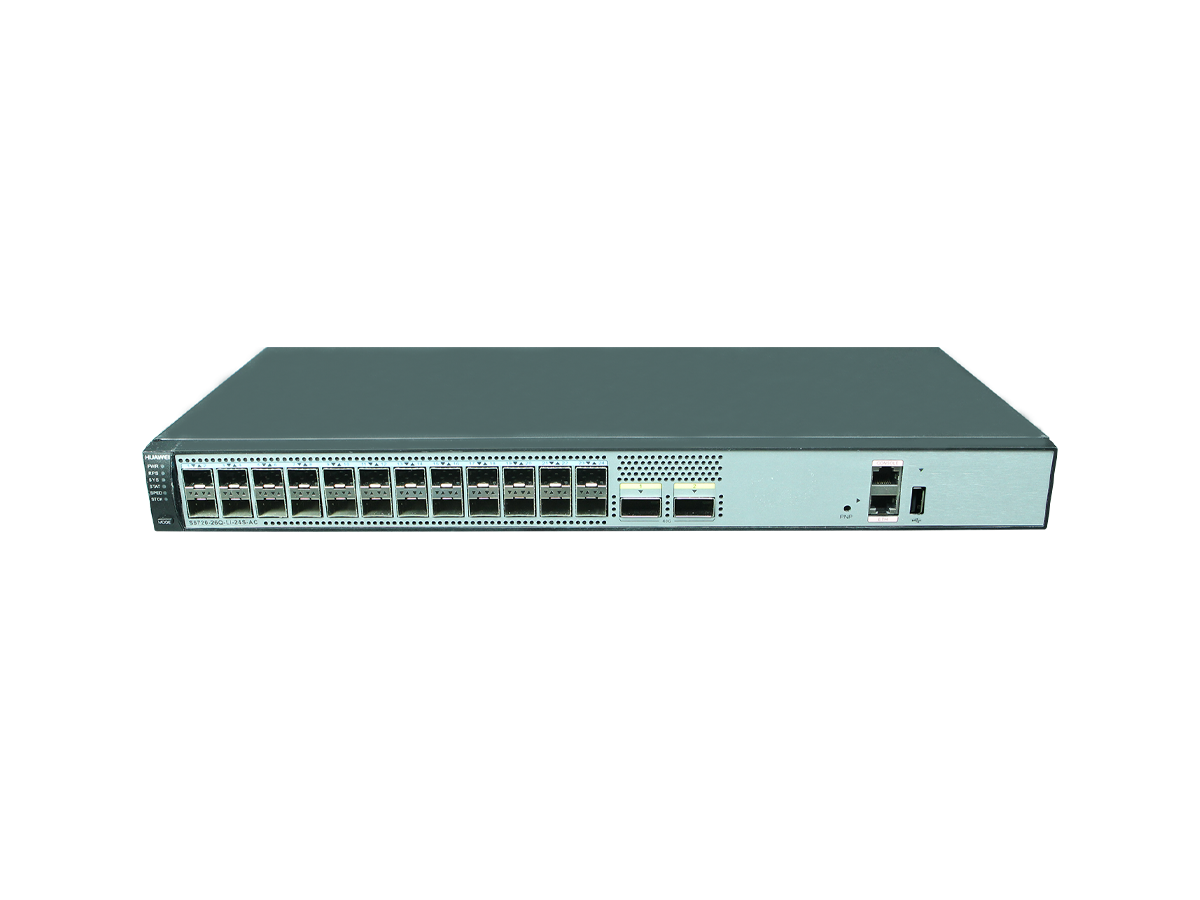

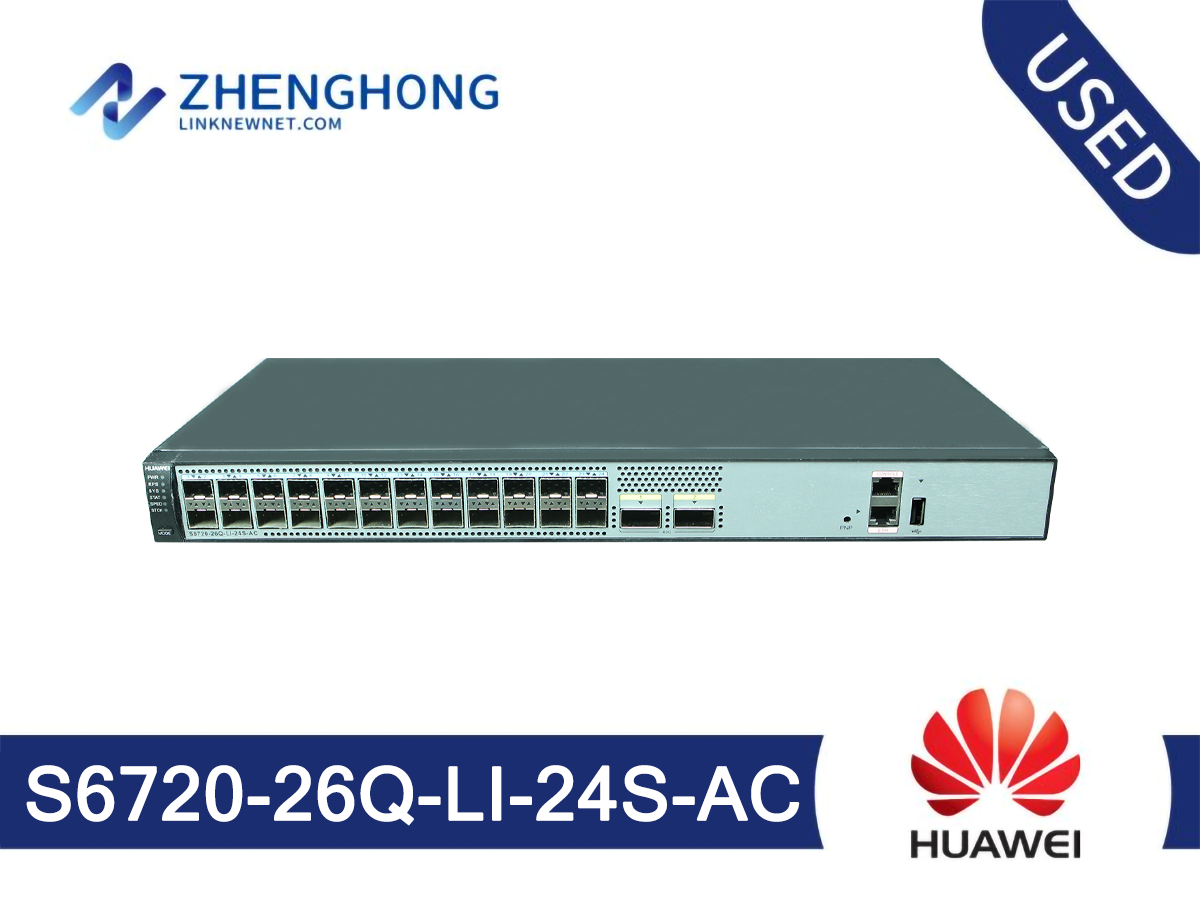

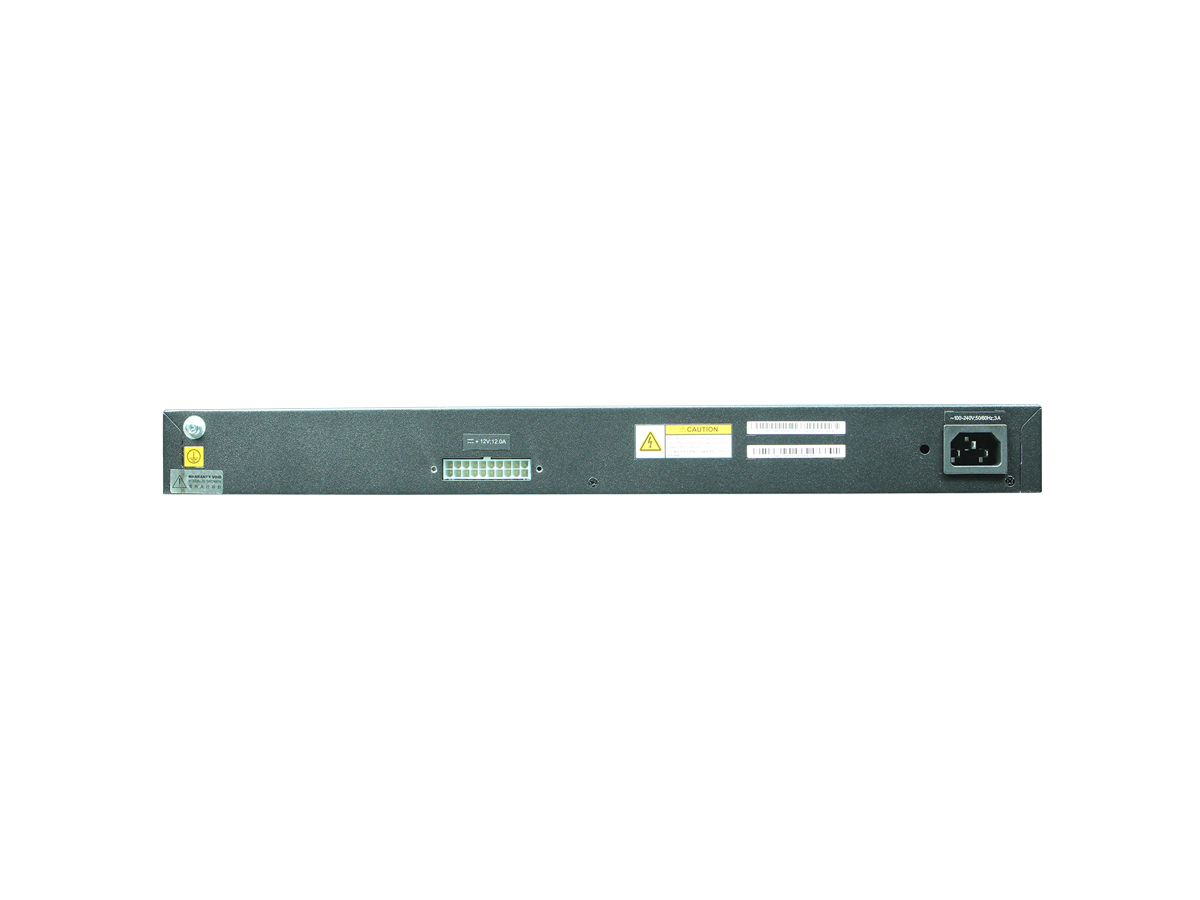

S6720-26Q-LI-24S-AC Specification | ||
Physical specifications | Chassis dimensions (W x D x H, mm) | 420 x 220 x 43.6 |
Chassis height | 1 U | |
Fixed port | 10GE port | 24 |
40GE port | 2 | |
Memory | Memory (RAM) | 1 GB |
Flash | Hardware: 512 MB, of which 240 MB is available for users | |
Power supply system | Power supply type | Built-in AC |
Power supply redundancy | Built-in single power supply and RPS in 6:1 mode | |
RPS | Supported | |
Rated voltage range | AC: 100 V AC to 240 V AC, 50/60 Hz | |
Maximum voltage range | AC: 90 V AC to 264 V AC; 47-63 Hz | |
Maximum input current | 3 A | |
Maximum power consumption of the device | 100.2 W |
