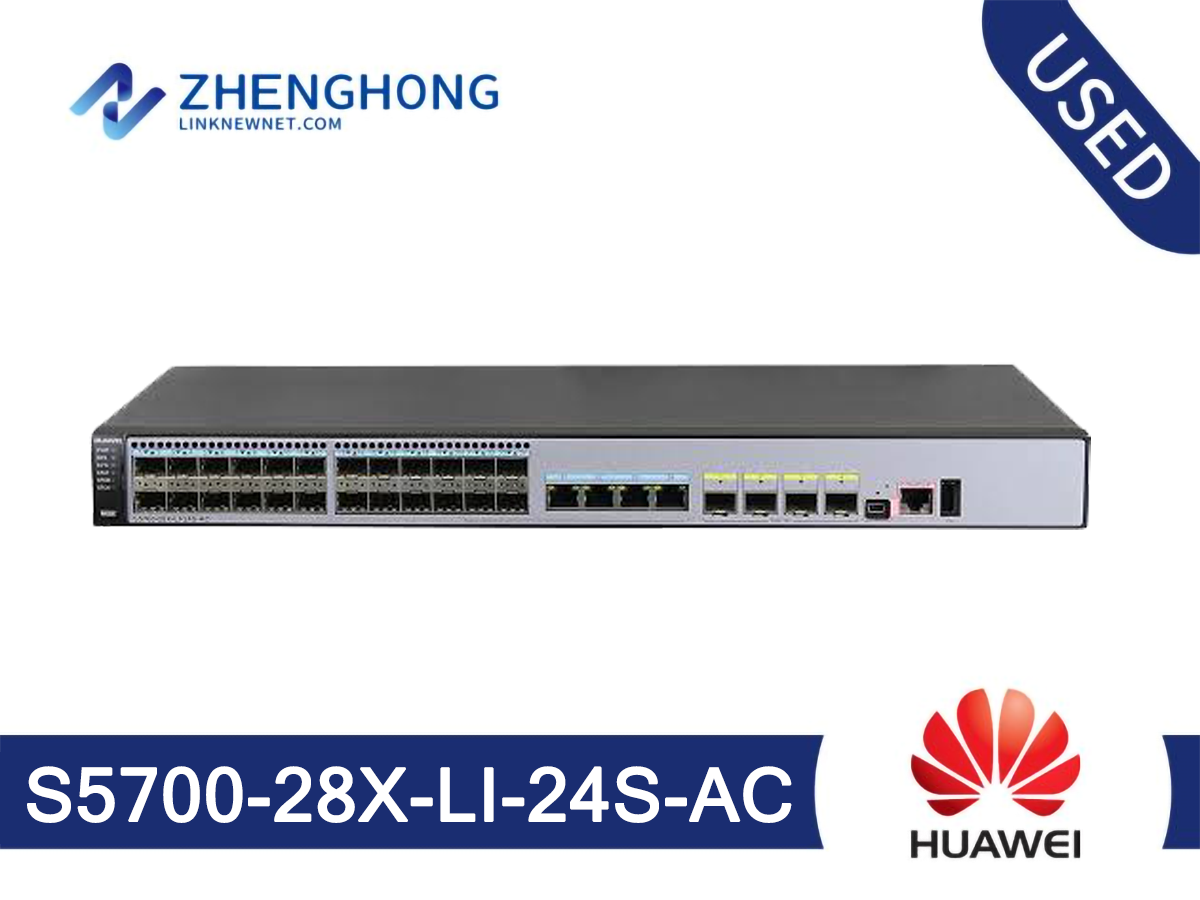

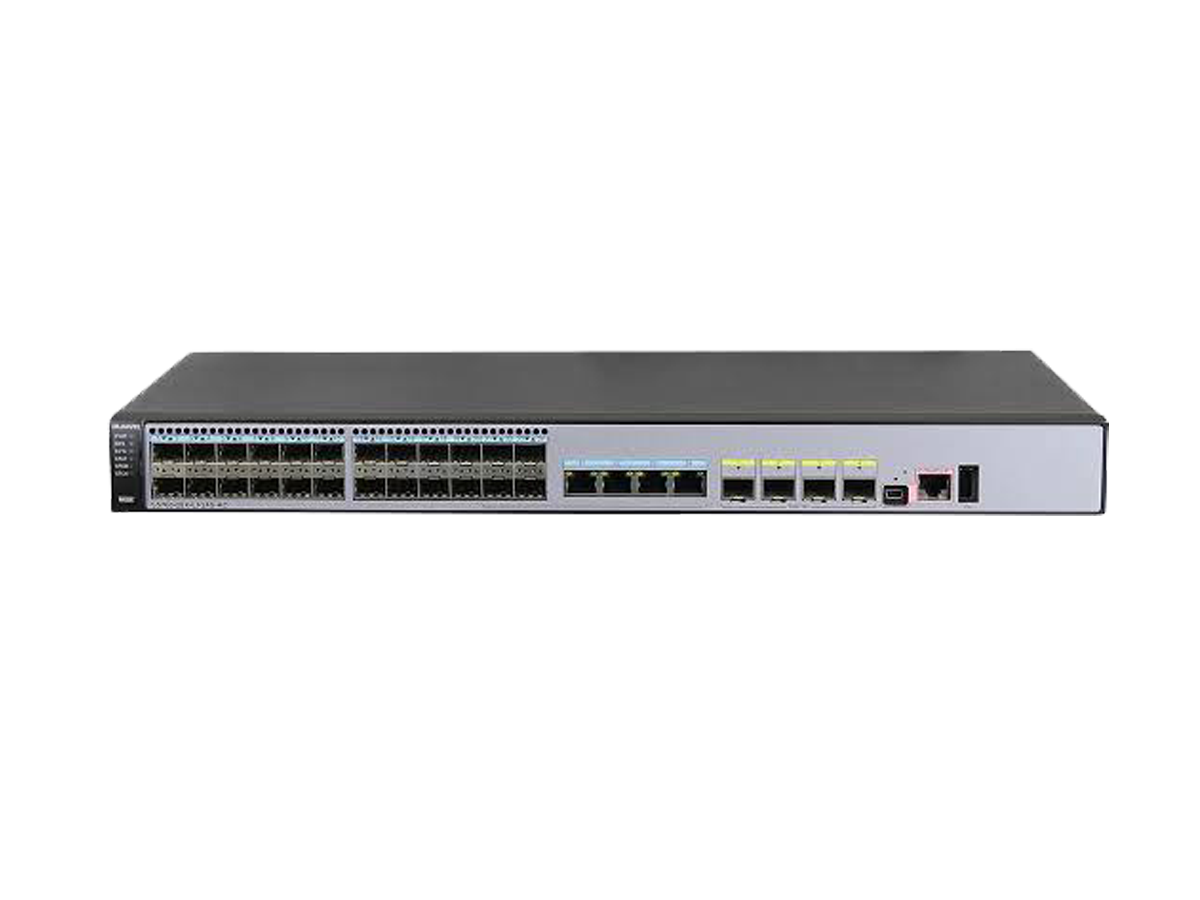

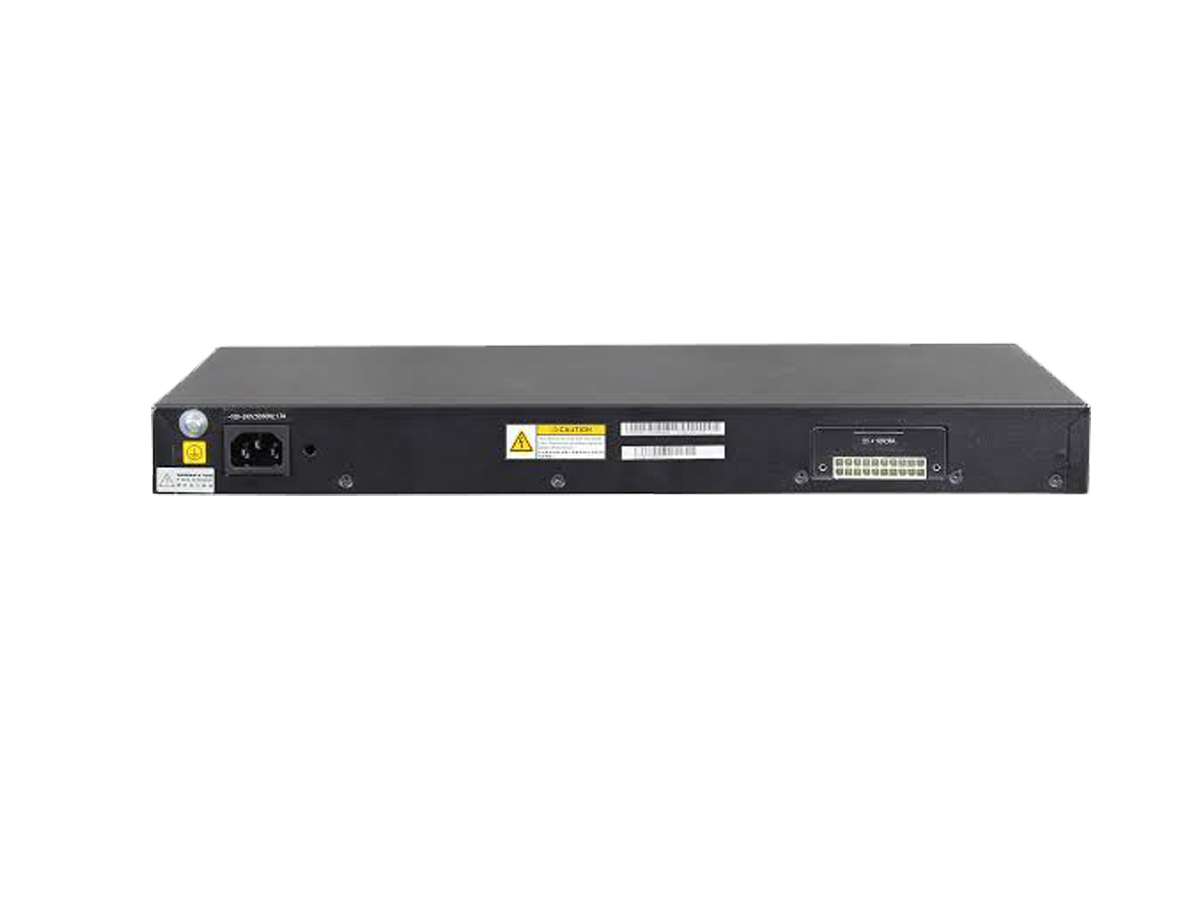

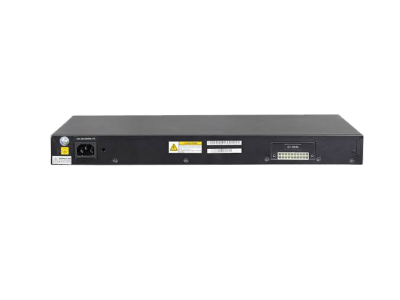

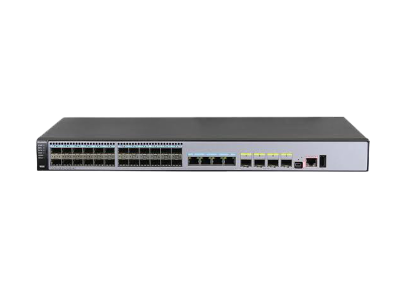

Huawei S5700 Series Switches S5700-28X-LI-24S-AC

Model: S5700-28X-LI-24S-AC

Detail: S5700-28X-LI-24S-AC(24 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,AC 110/220V)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5700-28X-LI-24S-AC Specification
Fixed port	24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
Dimensions (W x D x H)	44.2 cm x 22 cm x 4.36 cm
Power Consumption	S5700-28X-LI-24S<54W
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃
Operating environment	Relative humidity: 10%–90% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

Q&A

Q How Can I Obtain the MACsec Plug-in and Related Documentation?

A By default, switches do not support the MACsec function. The MACsec function is available only when a plug-in is installed on the switch.

Q How Can I Configure Multiple Static RPs on S5700-28X-LI-24S-AC?

A The static-rp rp-address basic-acl-number command can configure a static RP for multicast groups specified by an ACL. You can run this command multiple times to configure a maximum of 50 static RPs, but each ACL can be used to configure only one static RP. If no ACL is specified in the command, only one static RP can be configured.

Q Does the S5700-28X-LI-24S-AC Support LRM Optical Modules?

A The S5700-LI (10GE optical ports) support LRM optical modules.

Q Does the S5700-28X-LI-24S-AC Support the Optical Modules of Other Vendors?

A The S5700 can use only the certificated optical modules. If an uncertificated optical module is used, an error may occur and Huawei is not responsible for it.
