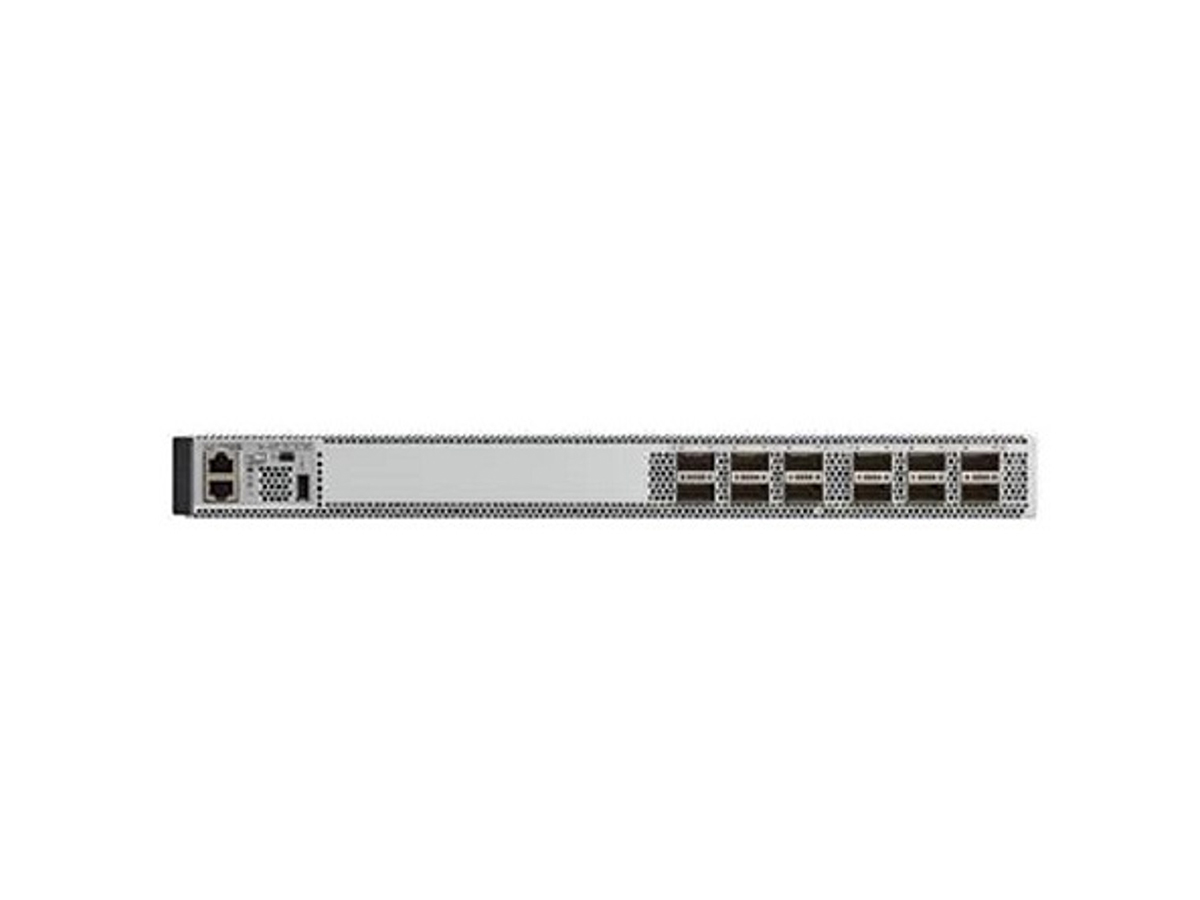

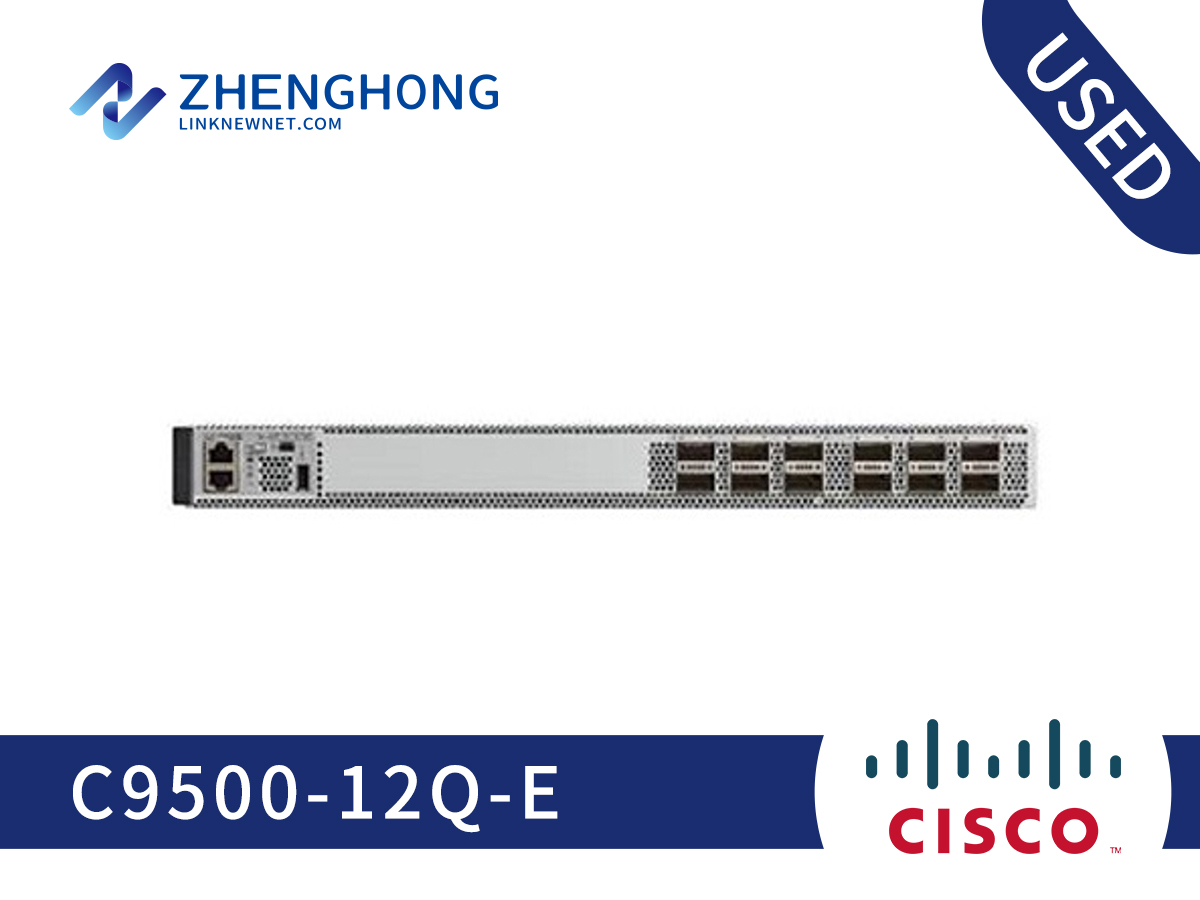

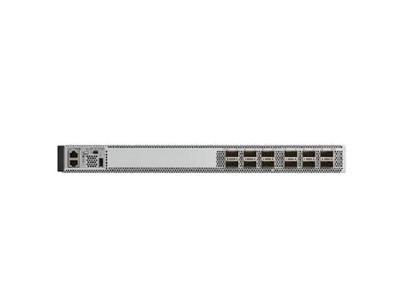

Cisco Switch Catalyst 9500 C9500-12Q-E|LinkNewNet

WS-X4612-SFP-E - Cisco Catalyst 4500 E Series Line Cards

Model: WS-X4612-SFP-E

Detail: Catalyst 4500 E-Series Line card 12-Port GE (SFP)

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-X4612-SFP-E Specifications
Port Information
Type	E-Series Gigabit Ethernet SFP Line Cards
Number of Ports	12
Port Speed	1000
Port Type	Pluggables
Wire Rate	1:1
Feature
Standards	● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology	● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions	● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions	● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m
Safety Conditions	Fiber optic lasers: Class 1 laser products
Safety Certifications	● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications	● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4
ROHS Compliance	ROHS5
Power and MTBF Information
Max Rated Power (W)	30
Rated MTBF (Hours)	676,740

Q&A

What are common troubleshooting steps for the WS-X4612-SFP-E?

Common troubleshooting involves checking SFP modules for faults, ensuring proper seating of the card in the chassis, and verifying configuration settings.

What accessories are compatible with the WS-X4612-SFP-E?

Compatible accessories include Cisco SFP transceivers like the GLC-LH-SMD and patch cables for connectivity.

How does the WS-X4612-SFP-E compare to similar products?

Compared to similar products, the WS-X4612-SFP-E offers a balanced mix of port density and cost, making it versatile for various networking demands.

Does the WS-X4612-SFP-E support high-speed data transfer?

Yes, the WS-X4612-SFP-E supports gigabit speeds through its SFP ports, ensuring efficient data transfer across network segments.

How cost-effective is the WS-X4612-SFP-E?

The WS-X4612-SFP-E offers high performance at a competitive price, making it an ideal choice for upgrading network capabilities without excessive costs.

What are the key features of the WS-X4612-SFP-E?

This line card features 12 GE ports with SFP modules, providing flexibility and high-speed connectivity for various network environments.

What are the application scenarios for the WS-X4612-SFP-E?

It is ideal for enterprise network aggregation, data centers, and high-density server connectivity.

How do I install the WS-X4612-SFP-E?

The WS-X4612-SFP-E can be installed by sliding it into an available slot in a Catalyst 4500 E-Series chassis and securing it with screws.

Does the WS-X4612-SFP-E require upgrades?

Yes, it is recommended to check for and apply firmware upgrades to ensure optimal performance and compatibility.

Are there alternative products to the WS-X4612-SFP-E?

Alternatives include other Catalyst 4500 E-Series line cards with varying port configurations and performance metrics.

What common issues might I encounter with the WS-X4612-SFP-E?

Common issues include compatibility problems with older chassis models and occasional firmware updates needed for optimal performance.

What accessories are available for the WS-X4612-SFP-E?

Accessories include SFP modules, power supplies for the 4500 chassis, and stacking cables.

How does the WS-X4612-SFP-E compare to other similar products?

The WS-X4612-SFP-E offers a balance of port density, flexibility, and cost-effectiveness compared to similar line cards in the Cisco Catalyst 4500 series.

How do I use the WS-X4612-SFP-E in my network?

Integrate the WS-X4612-SFP-E as a line card in your Catalyst 4500 E-Series chassis to expand your network's port density and improve connectivity.

How cost-effective is the WS-X4612-SFP-E?

The WS-X4612-SFP-E offers high performance at a competitive price, making it an ideal choice for upgrading network capabilities without excessive costs.

What are the key features of the WS-X4612-SFP-E?

This line card features 12 GE ports with SFP modules, providing flexibility and high-speed connectivity for various network environments.

What are the application scenarios for the WS-X4612-SFP-E?

It is ideal for enterprise network aggregation, data centers, and high-density server connectivity.

How do I install the WS-X4612-SFP-E?

The WS-X4612-SFP-E can be installed by sliding it into an available slot in a Catalyst 4500 E-Series chassis and securing it with screws.

Does the WS-X4612-SFP-E require upgrades?

Yes, it is recommended to check for and apply firmware upgrades to ensure optimal performance and compatibility.

Are there alternative products to the WS-X4612-SFP-E?

Alternatives include other Catalyst 4500 E-Series line cards with varying port configurations and performance metrics.

What common issues might I encounter with the WS-X4612-SFP-E?

Common issues include compatibility problems with older chassis models and occasional firmware updates needed for optimal performance.

What accessories are available for the WS-X4612-SFP-E?

Accessories include SFP modules, power supplies for the 4500 chassis, and stacking cables.

How does the WS-X4612-SFP-E compare to other similar products?

The WS-X4612-SFP-E offers a balance of port density, flexibility, and cost-effectiveness compared to similar line cards in the Cisco Catalyst 4500 series.

How do I use the WS-X4612-SFP-E in my network?

Integrate the WS-X4612-SFP-E as a line card in your Catalyst 4500 E-Series chassis to expand your network's port density and improve connectivity.

How cost-effective is the WS-X4612-SFP-E?

The WS-X4612-SFP-E is highly cost-effective for system integrators with its 12-port GE capabilities, ensuring robust performance and scalability for mid to large-scale networking solutions.

What key features define the WS-X4612-SFP-E?

The WS-X4612-SFP-E features 12 Gigabit Ethernet SFP ports, providing flexibility and high speed, making it suitable for diverse networking environments.

Where is the WS-X4612-SFP-E typically applied?

The WS-X4612-SFP-E is ideal for enterprise networks requiring high-speed interconnects, such as data centers and large organizational networks.

How do I install the WS-X4612-SFP-E?

The WS-X4612-SFP-E installs in the Catalyst 4500 E-Series chassis by simply sliding it into an available slot and securing it with the provided screws.

Does the WS-X4612-SFP-E require any upgrades?

Regular firmware updates from Cisco are recommended to ensure optimal performance and security for the WS-X4612-SFP-E.

Are there alternative products to the WS-X4612-SFP-E?

Alternatives include other Cisco 4500 switch modules like the WS-X4624-SFP-E, which offers 24 GE SFP ports for larger network requirements.

What are common troubleshooting steps for the WS-X4612-SFP-E?

Common troubleshooting involves checking SFP modules for faults, ensuring proper seating of the card in the chassis, and verifying configuration settings.

What accessories are compatible with the WS-X4612-SFP-E?

Compatible accessories include Cisco SFP transceivers like the GLC-LH-SMD and patch cables for connectivity.

How does the WS-X4612-SFP-E compare to similar products?

Compared to similar products, the WS-X4612-SFP-E offers a balanced mix of port density and cost, making it versatile for various networking demands.

Does the WS-X4612-SFP-E support high-speed data transfer?

Yes, the WS-X4612-SFP-E supports gigabit speeds through its SFP ports, ensuring efficient data transfer across network segments.
