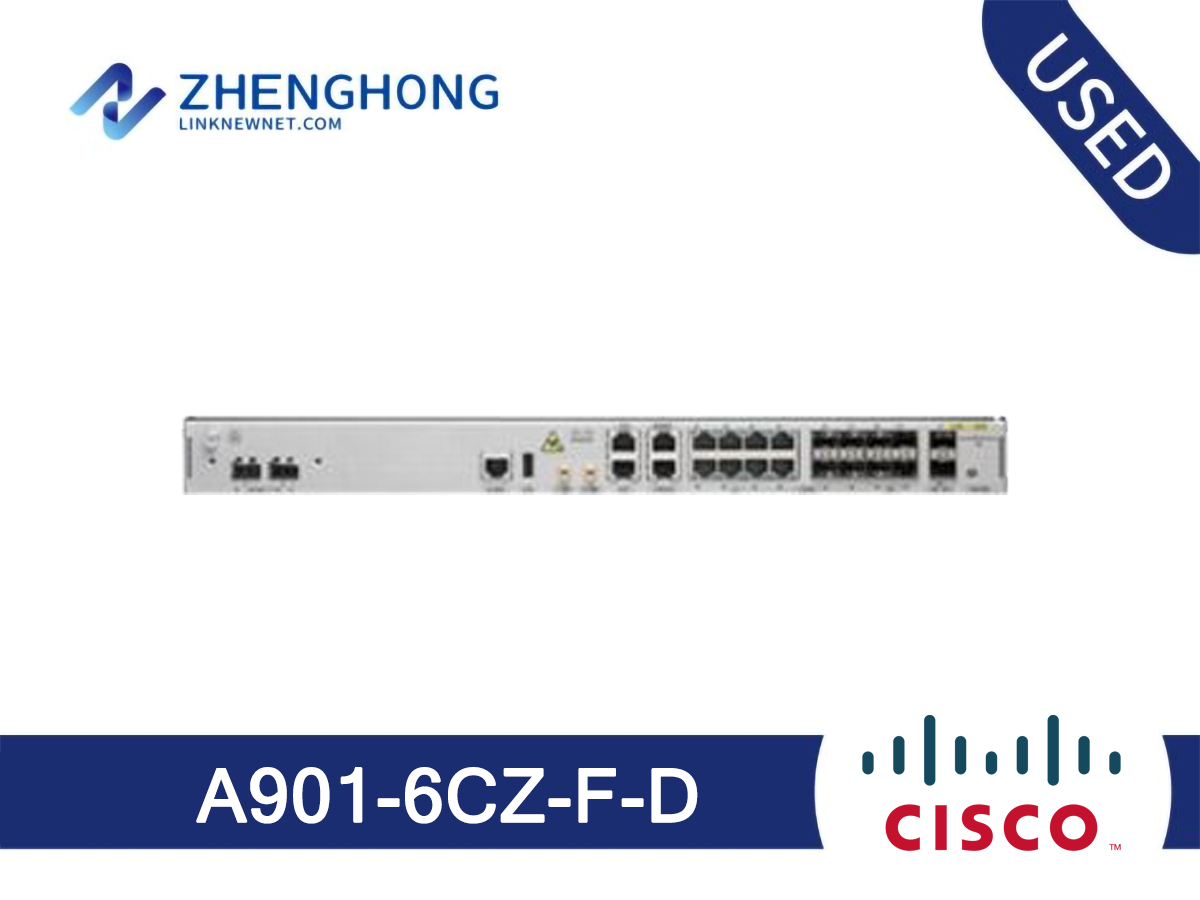

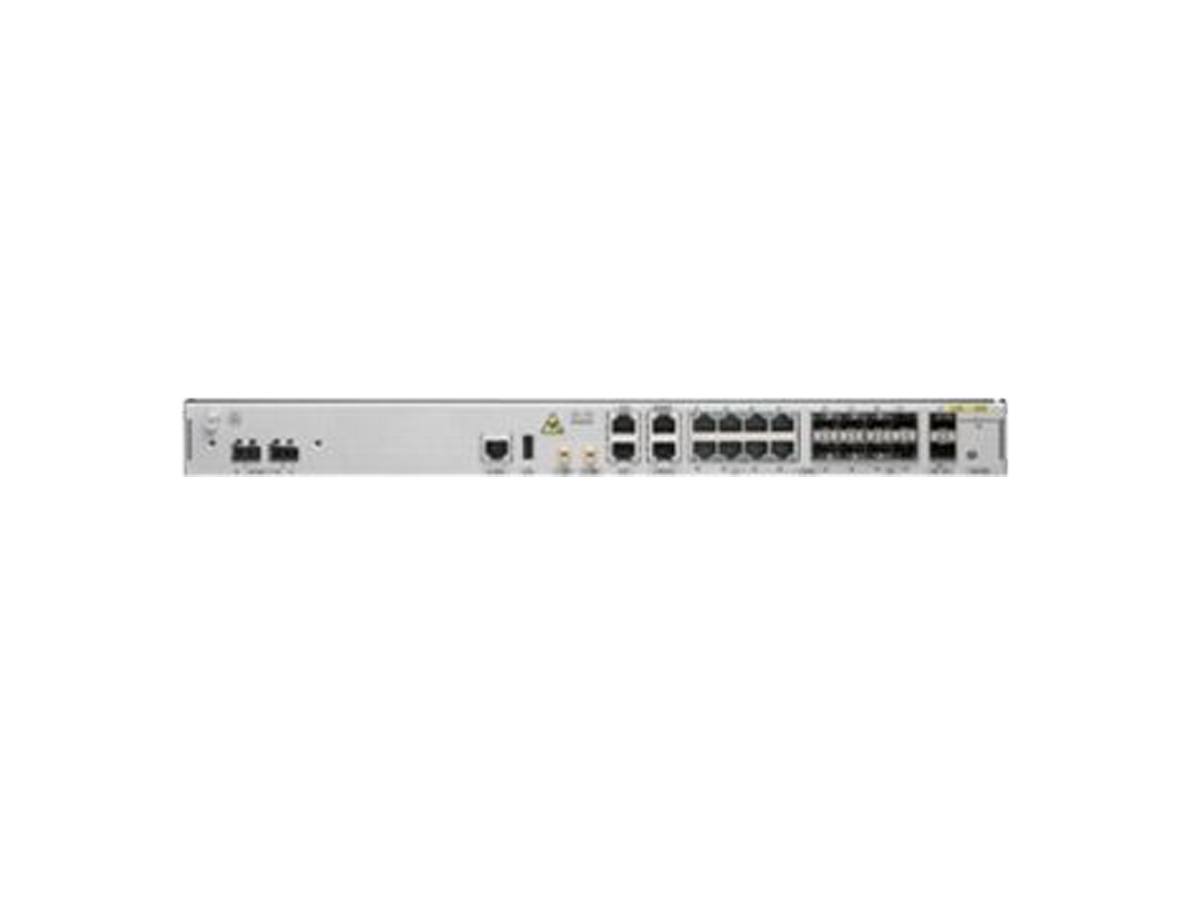

A901-6CZ-F-D Specifications | |
Description | Cisco ASR 901 Series Aggregation Services Router Chassis, Ethernet-only interfaces, 10 GE, DC power, USB |
System Specifications | |
Dimensions (H x W x D) | 1.7 x 17.5 x 9.1 in. (43.2 x 444.5 x 231 mm), 1RU |
Weight | 7.93 lb (3.6 kg) |
Console port | 1 (up to 115.2 Kbps) |
USB port | 1 supported on the following chassis models: |
Memory | Flash memory: 128 MB (onboard flash) System memory: 1 GB (DDR3) |
Air flow | Left to right airflow |
Cabling | Front-panel access cabling and LED indicators |
Power supplies | 2 power supplies (DC only); module redundancy: 1:1 |
Ethernet ports | 4 100/1000 RJ-45 Gigabit Ethernet ports 4 x 1 SFP Gigabit Ethernet ports 4 x 1 Gigabit Ethernet Combo ports 2 x 10 Gigabit Ethernet ports (10 GE models only) |
External timing ports | BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE |
Fans | 10 GE models: three fans, with redundancy |
Power Specifications | |
Power consumption | 10 GE models: dual DC Maximum DC-input power and power dissipation at 48V supply: · A901-6CZ-F-D: 58W · A901-6CZ-FS-D: 59W · A901-6CZ-FT-D: 67W |
Power rating | 10 GE models: · DC-input voltage rating: 24 VDC, -48 VDC, -60 VDC DC-input current rating: 4A maximum |
